Product description
Shipping & Return

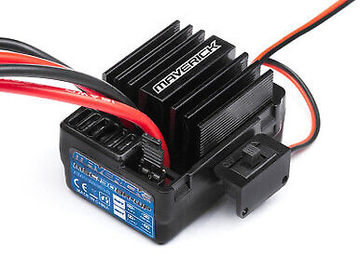

Maverick MSC-30BR-WP 1/10 Brushed ESC. This is a replacement ESC intended for use on Maverick's 1/10 Strada Brushed platforms. Alternatively, this durable electronic speed controller is suitable for vehicles of all types that are equipped with a brushed motor of twelve turns or more. This ESC is also water-resistant, making it the ideal choice for anyone who enjoys taking their vehicle out in wet conditions. The MSC-30BR-WP can handle LiPo power of 2S and 3S or between five and nine NiMH cells, and features a safety cut-off to protect your LiPo batteries.
Features:
Designed for use with brushed motors, providing smooth and efficient power control
Low-voltage, overheating, and throttle signal loss protection
Built-in BEC with a continuous current of two amps at 5V
2-3S LiPo Capable
Designed to work in wet conditions
Easy to install with pre-soldered connectors for the battery and motor
Specifications:
Suggested Application: 1/10
Motor Type: Brushed
Input Voltage: 2-3S LiPo, 5-9 Cell NiMH/NiCd
Forward Continuous Current: 40A
Forward Burst Current: 180A
Reverse Continuous Current: 20A
Reverse Burst Current: 90A
Dimensions: 1.83x1.34x1.12in (46.5x34x28.5mm)
Weight: 2.29oz (65g)
Motor Limits:
2S LiPo or 6-Cell NiMH: >12T - 540-550 size motor
RPM @7.2V: >30,000
3S LiPo or 9-Cell NiMH: >18T - 540-550 size motor
RPM @7.2V: >20,000
BEC Voltage: 6V-7.4V
BEC Continuous Current: 2A
BEC Peak Current: -
Motor Connector: -
Battery Connector: Tamiya
Motor Wire: -
Battery Wire: 16AWG
PWM Frequency: 1KHz
Programmable: Yes
