Hs-1425 cont rotation sx;univ

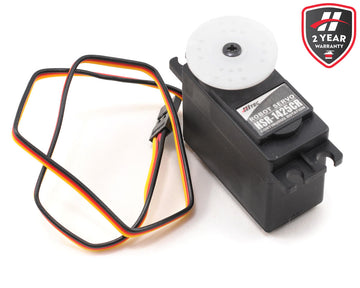

The HSR-1425CR is the continuous rotation (non-proprtional) version of the HS-425HB ideal for robotic applications. This servo has a universal type connector. Specifications: Operating Voltage Range (Volts DC): 4.8V ~ 6.0V Speed (RPM): 43 ~ 52 Maximum Torque Range oz. / in.: 39 ~ 47 Maximum Torque Range kg. / cm.: 2.8 ~ 3.4 Current Draw at Idle: 8 mA No Load Operating Current Draw: 150 mA Stall Current Draw: 640 mA Dead Band Width: 10 µs Dimensions (Inches): 1.59 x 0.77 x 1.44 Dimensions (Metric): 40.6 x 19.8 x 36.6 Weight (Ounces): 1.47 Weight (Gram): 41.7 Circuit Type: HT7003 Analog SMT Motor Type: 3 Pole Metal Brush Ferrite Gear Material: Nylon Bearing Type: Dual Ball Bearing Output Shaft (type / Ømm): Standard 24 Case Material: Plastic Connector Gauge (AWG) / Strand Count: 25 / 40 Limited Warranty: Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
