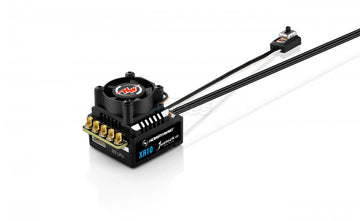

Hobbywing XERUN XR10 Justock G3S Brushless ESC

Hobbywing XERUN XR10 Justock G3S Brushless ESC PRODUCT INFORMATION: Features: The XR10 Justock G3S has precise control and powerful performance. It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions. When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on. The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range. With the freewheeling function turned on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners. Built-in polarity protection. One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals. Multi RPM limit, select as needed. Supports 79 RPM Limits, (10000-88000RPM) RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world. The built-in capacitor module eliminates the need for external capacitors and unwanted space. The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market. The ESC has a built-in data recording function. Making it easy to obtain the operating status. The data includes the Minimum voltage, Maximum current, Maximum RPM, Maximum ESC temperature and Maximum motor temperature. After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real-time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m! The number of parameters has been increased to 15. It is tailored and is more in line with competition needs. Type: Scale: 1/10th Brushed/Brushless: BL Sensored/Sensorless: SD Waterproof: No Specifications: Cont./Peak Current: 60A/380A Input Voltage: 2S Lipo BEC Output: 6V/7.4V @4A Wires & Connectors: Input Wires: Black-14AWG-200mm*1 Red-14AWG-200mm*1 Output Wires: Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1 Input Connectors: No Output Connectors: No Fan: Size: 25*25*10mm Voltage Range: 5-7.4V Powered by: BEC ESC Programing via: SET Button on ESC: Not Supported LED Program Box: Not Supported LCD G2 Program Box: Supported LCD Box PRO: Supported OTA Programmer: Supported Program Port: Separate Data Recording: Extreme value: Supported Real-time Data: Supported Historical data (Graph): Supported Firmware: Firmware Upgrade: Supported Size & Weight: Size: 40.9X33.9X32.1mm Weight: 75.4g(w/Wires) Applications: Motors: SL BL Motors / SD BL Motors Vehicles: 1/10th, 1/12th On-road and Off-road club competition and normal training KV Rating/T Count: ≥10.5T 3650 Motor Package total weight: 142.00 grams (incl. packaging) Package size: 9.00 x 12.00 x 7.00cm Factory description: Hobbywing XERUN XR10 Justock G3S Brushless Sensored Brushless ESC for 1/10 & 1/12 RC Manufactured by Hobbywing Manufacturer number: HW/30112005 This item is eligible for in-store promotions Nobody beats our price! See our Best Price Guarantee, or your money back! Questions about this product? Ask Our Technical Support You may Request Additional Product Information for this product. Looking for screws / bolts to assemble this product? Email Us View ATees.com Glossary of Terms
