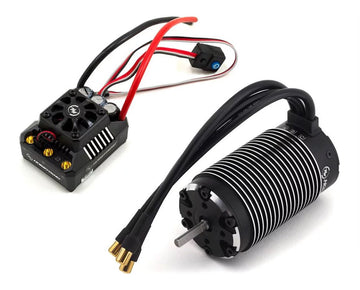

Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo w/4985SL (1650kV)
The Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo includes the 4985SL 1/7 scale, 1650kV motor and is a great option for high-end, aggressively powered 3S - 6S builds.
Specifications:
Motor:
Model: 4985SL-1650KV
Pole: 4
KV (No-load): 1650KV
Resistance: 0.0053 Ω
Current (No-load): 5.4 A
Max. Output Power: 5700 W
Current at the point of M.O.P: 160 A
Motor Diamter: 49mm
Motor Length: 86.5mm
Shaft Diameter: 5.0mm
Shaft Length: 21.5mm
LiPo Cells: 3-6
Weight: 587g (20.71oz)
Applications: 1/6th & 1/7th RC Vehicles
ESC:
Continuous Current: 160A
Peak Current: 1,050A
Motor Type: Sensorless Brushless Motor
Applications: 1/6th Touring Car, Buggy, Truggy and Truck
Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size (LxWxH): 70x56x46.5mm
Weight: 240g
Programming Port: FAN /PRG Port
Includes:
(1) Ezrun MAX6 ESC
(1) Ezrun Max Motor 4985SL 1650KV
(1) 8 AWG 200C Red Power Wire
(1) 10 AWG 200C Black Power Wire
(1) Double Sided Tape
(2) Heat Shrink Tubes
(1) User's Manual
(1) Hobbywing Decal
