E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC (V2)

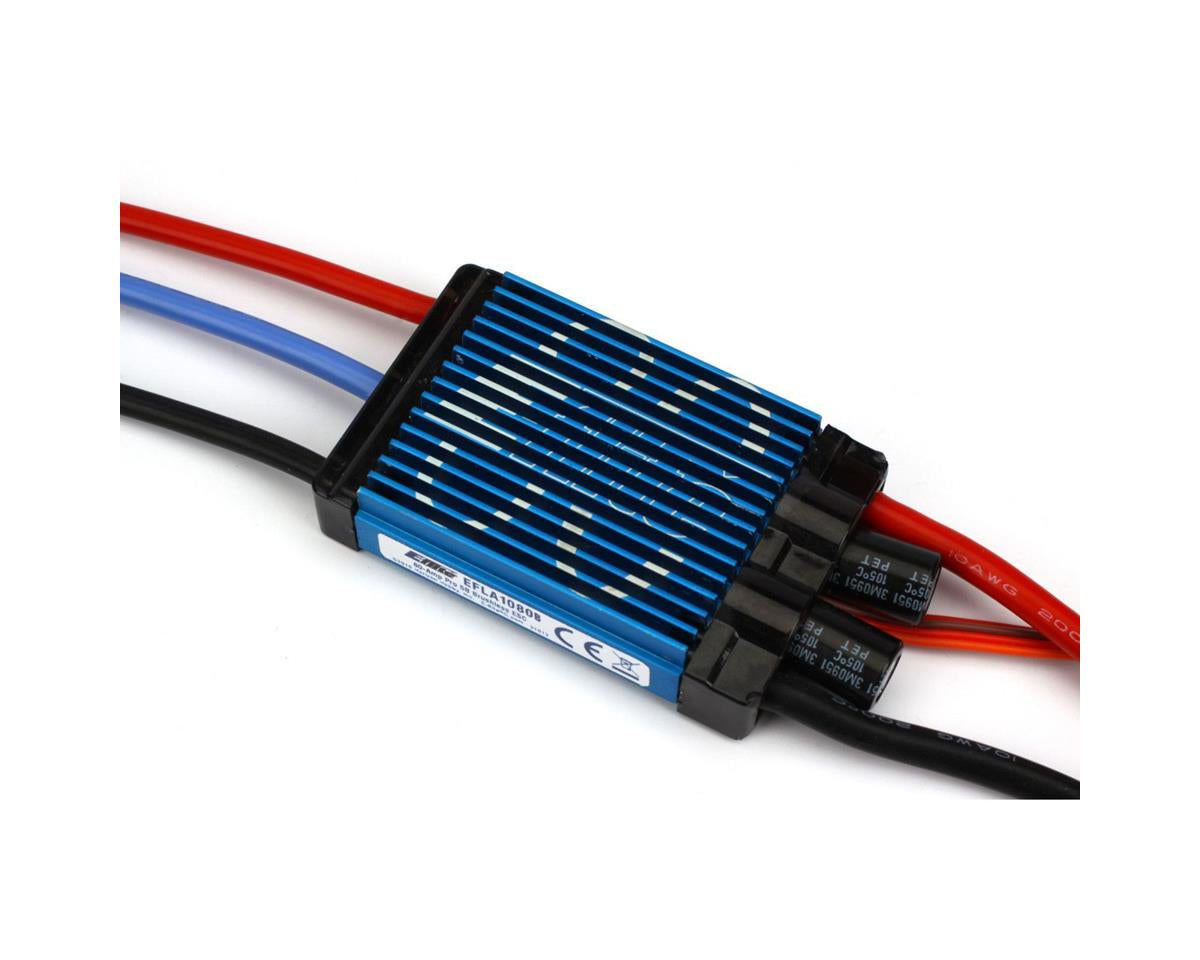

This is the E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC, Version 2. When performance matters in your high-current applications look no further than the E-flite 80-Amp Pro Switch Mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated Switch-Mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic endcaps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range, and more, the E-flite 80-Amp Pro Switch Mode ESC is truly a ‘pro series’ electronic speed control. Features: 3–6S Li-Po, 9- to 18-cell Ni-Cd/Ni-MH input voltage 5-volt Switch-Mode BEC circuit capable of 2.5-amp continuous current on any recommended input voltage Drives up to 7 analog or 6 digital standard-sized servos, with the BEC on any recommended input voltage Up to 80-amp continuous current with proper air flow, 100-amp peak Tech Note: This ESC is NOT COMPATIBLE with the E-Flite Power 60 470kV Brushless Motor Specifications: Forward: Yes Brake: Yes Time Delay Brake: Yes Continuous Maximum Current: 80A Input Connector Types: EC5, 10AWG Output Connector Types: 4mm Gold Bullet, 12AWG Momentary Peak Current: 100A Length: 3.0 in (77mm) Width: 1.6 in (41mm) Height: 0.62 in (15.5mm) Weight: 3.75 oz (106g) BEC Voltage: 5.5V Switch-mode Overload Protection: Yes Cells w/BEC: 9-18 cells NiMH, 3-6S LiPo Auto Cutoff: Yes
