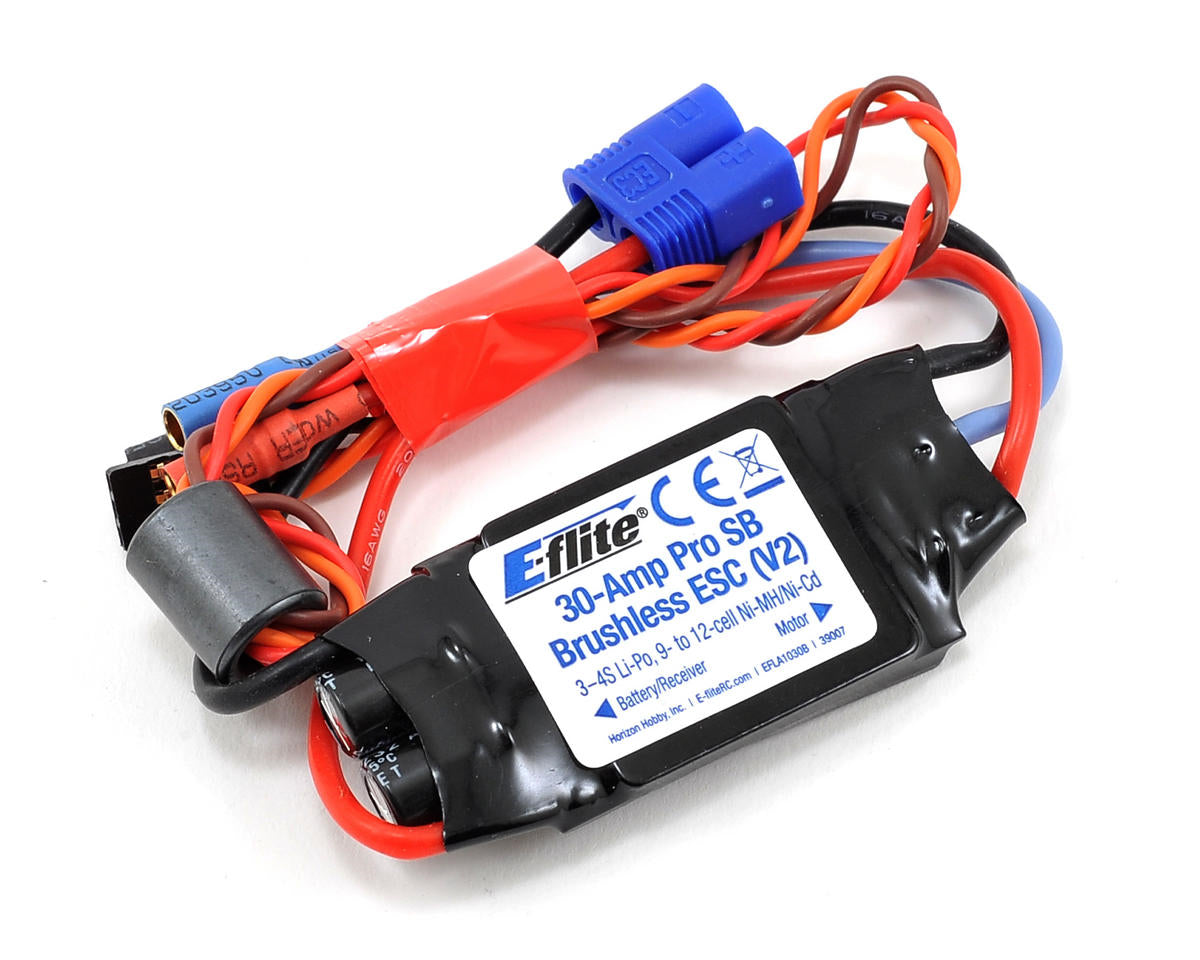

E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC (V2)

This is the E-flite 30-Amp Pro Switch-Mode BEC Brushless V2 Electronic Speed Control. This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. Features: Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds) 3.5A continuous current, 5V Switch-Mode BEC Circuit Stronger BEC for support of most 3-axis stabilization systems Drive up to 7 analog or 6 digital standard-size servos with the BEC 3 to 4-cell LiPo, 9 to 12-cell NiMH/NiCd input voltage Programmable motor braking Safe power-arm mode prevents accidental starts Programmable low voltage cutoff with settings for 3-cell LiPo (9.2V), 4-cell LiPo (12V) or 74% of battery starting voltage Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms) Programmable soft start for helicopters and airplanes Auto motor shut down if signal is lost or there is interference Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors Pre-wired E-flite EC3 connector on the battery input and 3.5mm gold bullet connectors on the motor output leads Specifications: Continuous Maximum Current: 30A Input Voltage: 3–4S LiPo or 9–12 NiMH/NiCd Input Connector Types: 16 AWG leads with E-flite EC3 Connector Output Connector Types: 16 AWG leads with 3.5mm Gold Bullet Connectors Momentary Peak Current: 35A (15 sec) Length: 51.0mm (2.00 in) Width: 28.0mm (1.10 in) Height: 8.70mm (0.35 in) Weight: 31.0 g (1.10 oz) Wire Gauge: 16 AWG
