Castle Creations Phoenix-10 Brushless ESC

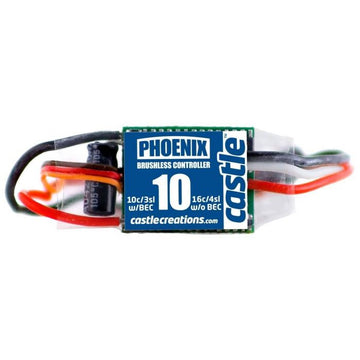

Castle Creations Phoenix-10 Brushless ESC This is the Phoenix-10 Brushless ESC made by Castle Creations. Key Features Extremely low resistance (.013 Ohm) High rate (11kHz) switching Up to 10A continuous current with proper air flow, 15A surge Five to eight cells with four micro servos Up to ten cells with three micro servos 16 cells max with BEC disabled Dynamic braking ensures folding props fold properly BEC (1.5A) provides power to receiver and servos-eliminates need for a separate receiver battery User programmable features: Low voltage cutoff Auto-LiPo setting automatically sets 3V/cellfor 2-4 cell LiPo packs Over-current protection Brake type Throttle range Timing advance Cutoff type Soft start ramp up Runs motor in forward or reverse Auto motor in cutoff with reset Safe power on arming program ensures motor won't accidentally turn ON Low torque soft start prevents damage to fragile gearboxes Auto Shut Down when signal is lost or radio interference becomes severe Specs Length: 1" (25.4mm) Width: 3/4" (19mm) Height: 1/8" thick (3mm) Wire Length: 4" (102mm) Motor Ends 5.5" (140mm) Battery End 5.5" (140mm) servo wire with Universal connecter Included Instruction sheets Phoenix 10 ESC Requires Soldering to motor and connector Soldering iron Solder Battery connector (specific to customer's connectors)
